FR4 plastic machining insulation panel

FR4 PLASTIC MACHINING INSULATION PANEL :

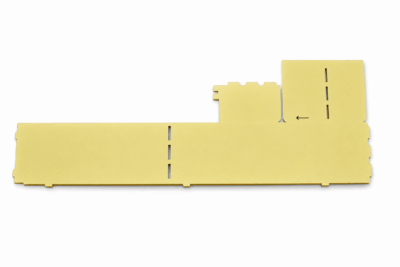

This FR4 insulation panel is a precision flat component manufactured using plastic machining, designed for applications requiring electrical insulation, dimensional stability, and reliable mechanical performance.

Made from FR4 glass-fiber reinforced epoxy laminate, the part offers good dielectric properties, mechanical rigidity, and heat resistance for technical and industrial environments.

Featuring precision cut-outs, slots, routed contours, and positioning features, this component ensures accurate fit and secure integration within electrical and electronic assemblies.

SPECIFICATIONS :

Material: FR4 glass-fiber reinforced epoxy laminate

Surface finish: Natural FR4 finish

Geometry: Flat machined panel with routed contours, slots, tabs, and cut-outs

Dimensions: Approx. 343.5 mm × 125.25 mm

Thickness: 1.6 mm

Features: Precision slots, routed edges, positioning areas, V-cut details, and UL logo locations

USAGE :

Suitable for industrial and technical applications requiring precision-machined FR4 components, including:

• Electrical insulation panels
• Support and carrier plates
• Electronic assembly panels
• Industrial equipment insulation parts
• OEM assemblies requiring rigid insulating material

Designed to provide dimensional stability, insulation performance, and long-term durability in demanding technical environments.

NEED HELP WITH YOUR FR4 PLASTIC MACHINING PARTS?

We support custom FR4 plastic machining parts from prototype to series production, including complex profiles, precision slots, cut-outs, and customized insulating panels tailored to your application.

If you have drawings or specifications, our team can help review your project, optimize the machining process, and ensure reliable, consistent production.

Contact us to request a free quotation for your custom FR4 plastic machining parts!
