Custom cable harness assembly

CUSTOM CABLE HARNESS ASSEMBLY :

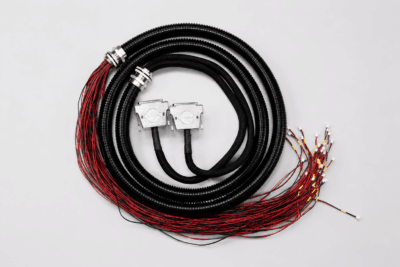

This custom cable harness assembly is designed for industrial equipment requiring organized wiring, reliable signal transmission, and secure integration within complex technical systems.

Made by electrical cable assembly, the harness includes multiple wire bundles, protective conduit, cable glands, JST connectors, and SUB-D50 connectors for structured electrical connection.

The assembly is designed to support accurate cable routing, connector identification, and long-term reliability in demanding industrial environments.

SPECIFICATIONS :

Configuration: Three wiring harness groups — F1, F2, and F3

Circuit identification: EV001 to EV150

Wire: AWG24 red and black conductors

Connectors: JST PHR-2 housings with SPH-002T-P0.5S contacts and SUB-D50 connectors

Cable protection: Braided sleeving and PMAFLEX IP68 conduit

Cable entry: M32 cable glands with nuts and seals

Equipment section length: 2,100 mm

SUB-D cable length: 600 mm

JST wire lengths: 745 mm, 1,225 mm, and 1,685 mm

Braided sleeve lengths: Approx 2,200 mm, 2,945 mm, and 3,425 mm

USAGE :

Suitable for industrial and technical equipment requiring customized wiring and connector integration, including:

• Industrial printing equipment
• Automation equipment
• Electrical control systems
• Machine wiring assemblies
• OEM equipment requiring custom cable routing and connector integration

Designed to ensure reliable signal transmission, organized wiring, secure connector integration, and stable performance in demanding industrial applications.

NEED HELP WITH YOUR CUSTOM CABLE HARNESS?

We support custom cable harness and wire harness assemblies from prototype to series production, including wire cutting, connector assembly, cable protection, labeling, and final inspection according to customer drawings.

If you have drawings, wiring diagrams, connector lists, or technical specifications, our team can help review your requirements and ensure reliable, consistent production.

Contact us to request a free quotation for your custom cable harness assembly!
