Sensor connectors
Solutions for harsh and noisy environment connectors, our JONHON sensor connectors solutions focus on high-quality sealing, shielding, and error proofing, enabling a stainless transmission of even the lowest level signals.
Our offers covers the M12 & M8 references of IEC61076-2, provided straight or right angles connectors, bare connectors, pre-wired connectors and SMT connectors.
M12 sensor connectors
Fully compliant with IEC61076-2-101 international standard, with a thread locking casing which guaranties good connection even in high-vibration environment.
M12L models are shielded with zinc alloy shell, mostly dedicated to industrial robot connections.
- Working current : 1.5A / 2A / 4A / 5A
- Rated voltage : power supply 250V (AC) / signal 30V (DC)
- Working temperature : -40°C / 85°C
- Sinusoidal vibration: frequency 10Hz ～ 500Hz, acceleration 98m/s²
- Salt spray test : 96h
- IP67
Following the IEC61076-2-101 standard, M12 sensor connectors can be further defined by an extra wording :
- M12 A connectors (2 to 17 contacts) (30 to 250V) (1.5 to 4A) DC current, Ethernet up to 1 Gbps
- M12 B connectors (5 contacts) (60V) (4A) DC current, profibus, interbus or other buses
- M12 C connectors (3 to 6 contacts) (30 to 250V)(2 to 4), AC current
- M12 D connectors(4 contacts) (250V)(4A), for 100 Mbps Ethernet
- M12 X connectors (8 contacts) (30V) (1A), CAT6A, Ethernet up to 10 Gbps
- M12 P connectors (5 contacts) (60V) (4A), EtherCAT P system up to 100 Mbps
M8 sensor connectors
Fully compliant with IEC61076-2-104 international standard, with a thread locking casing which guaranties good connection even in high-vibration environment. M8 sensor connectors are mainly used for factory automation connectivity.
M12L models are shielded with zinc alloy shell, mostly dedicated to industrial robot connections.
- Working current : 1.5A / 3A
- Rated voltage : power supply 50V (AC) / signal 30V (DC)
- Working temperature : -40°C / 85°C
- Sinusoidal vibration: frequency 10Hz ～ 500Hz, acceleration 50m/s²
- Salt spray test : 96h
- IP67
Following the IEC61076-2-104 standard, M8 sensor connectors can be further defined by an extra wording :
- M8 A connectors (3 to 8 contacts) (30 to 60V) (1.5 to 3A)
- M8 B connectors (5 contacts) (30V) (3A)
- M8 D connectors (4 contacts) (60V)(3A)
- M12 P connectors (4 contacts) (60V) (3A), EtherCAT P system
Servo motor connectors
Servo motor connectors are designed for relatively high power and signal interface for position and feedback in an industrial environment.
M23 servo motor connectors are the most common connectors, JONHON also offers M40, M58 and SDC servo motor connectors.
M23 servo moto connectors
Locked by thread these connectors has power and signal contacts. They are used for servo motors and automation equipment.
- Working current : power supply 20A, Signal 3.6A
- Rated voltage : 380 V (AC) for power supply, 150V (DC) for signal
- Working T° : -40°C to 125°C
- Vibration: frequency 10Hz ～ 2000Hz, acceleration 15g.
- Salt spray test : 96h
- IPX6/IPX7
There are two main categories of M23 connectors according to their usage :
- Power : M23 6 pins / M23 8 pins, Cables 4G1.5 | 4G2.5 | 4G4.0 / +2*1.5 |2*2*0.75 | 2*2*1.1
- Encoding : M23 12 pins / M23 17 pins, cables 0.18 / 0.14 / 0.5 / 0.34 /0.22
Power supply connectors
Power distribution connectors
When distribution of power from one source to multiple loads or sub-circuits is needed, JONHON have the most cost effective solutions :

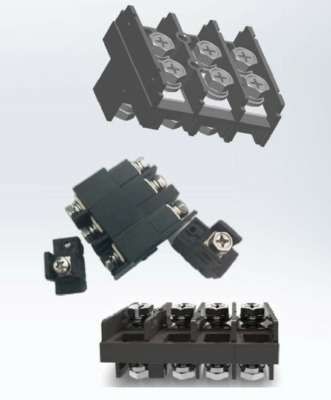

M4 | M6 | JX38 connectors
- UL & CUL certified
- Bold crimping
- Curent rating : 40 to 120A
- Voltage rating : 220V
- Max supporting voltage : 1500V
- Working T° : -40 to 105°C
- Endurance : 50 cycles
- Salt spray test : 48h

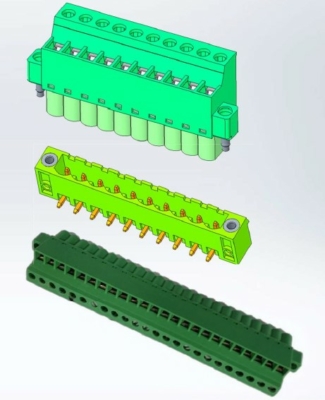

CZ5A power distribution connectors
Ideal for cabinet internal power connectivity.
- High variety of termination contacts for 1.5 to 2.5mm2 cables.
- Bent metal sheet contacts, very cost effective
- Current rating : ≤5A
- Voltage rating : 300VDC
- Max supporting voltage : 1500V AC
- Working T° : -55°C to 85°C
- Endurance : ≥ 500cycles

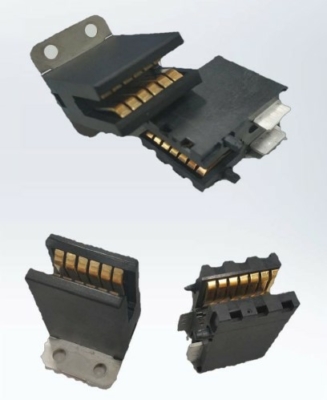

CZ43 power distribution connectors
Ideal for connecting a PCB to a busbar.
- Current rating : 157A / 125A
- Voltage rating : 12VDC / 48 VDC
- Max supporting voltage : 1500 V AC
- Working T° : -40°C to 85°C
- Endurance : ≥ 200cycles
- Floating range up to +/- 0.75mm
Power terminal connectors
Secure connections of cables to PCB or devices.

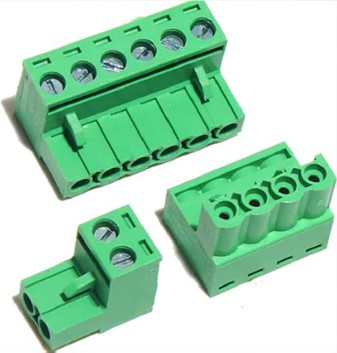

Generic power connectors
For power supply connectivity
- Diversity of number of nodes options
- Secure cable fixing by screws
- Working current : 20A
- Rated voltage : 48V
- Working T° : -40°C to +85°C
- Sinusoidal vibration: frequency 10Hz ～ 2000Hz, acceleration 15g.
- Salt sprat testing : 96h

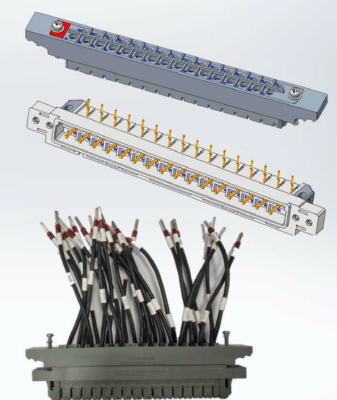

GZH power connectors
Power connection inside cabinets.
- Diversity of shapes of nodes options
- Clamping contacts made of metal sheets
- Current rating : 10A/23A
- Voltage rating: 220VAC / 110 VAC
- Max supporting voltage : 28 900V
- Working T° : -25°C to 85°C
- Endurance : ≥ 500cycles
- 16 /32 or 64 contacts
- Cable size : 12AWG to 16 AWG

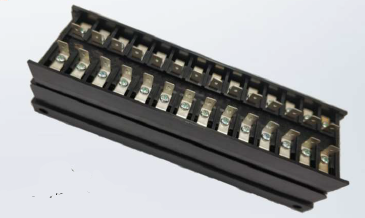

GJGN Schneider Electric & GE connectors
Power connectors developed for Schneider Electric and General Electric power supply solutions.
- Fixed with a D3mm contact and metal blade
- Max voltage : 2000 V
- Contact resistivity : ≤5mΩ
- Working T° : -40°C to 85°C
- Endurance: 100 cycles
UPS power connectors
Because a UPS sits at the boundary between the grid, batteries, and critical loads, it has specific security and reliability requirements that are fully met by JONHON’s connectors.

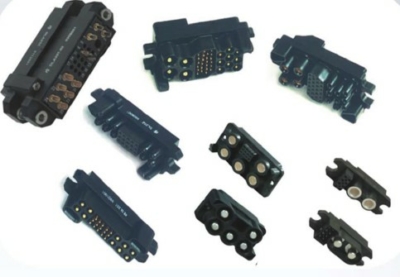

DL UPS connectors
Direct plugging solution for UPS systems.
- Fast power exchange
- Mixed power and signal connection
- Rated current : 150A, signal 1A
- Rated voltage : 250V AC, Signal 120V DC
- Working temperature : -40°C to 125°C
- Vibration: frequency 10Hz~2000Hz, acceleration 10g;
- Endurance: 3000 cycles

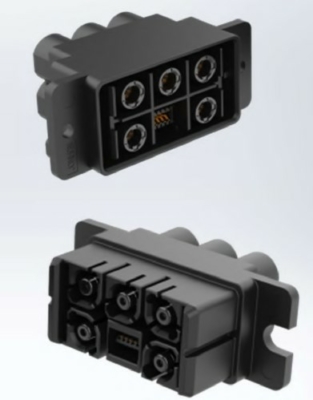

MQDL UPS connectors
Customized for Schneider Electric solutions for DL series UPS.
- 0# power contact compatible
- Anti-touch finger protection
- Current rating : 105A (power), 1A (signal)
- Rated voltage : 600V (power), 200V (signal)
- Working T° : -40°C to 105°C
- Sinusoidal vibration: frequency 10Hz ～55Hz, amplitude 0.75mm.
- Salt spray test : 48h
- Endurance: 100 cycles
Charger power module connector
Specific connectors for charging pile.

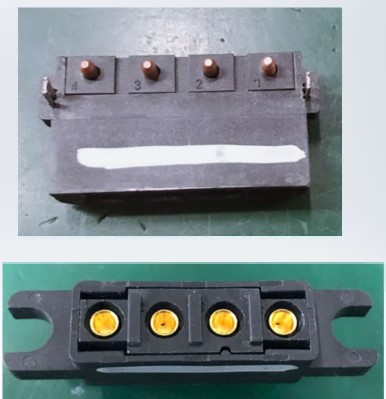

AC input CZ36E-40 connectors
AC charging pile module
- Number of contact pins : 4
- UL certified
- Current rating : 40A
- Voltage rating : 600 V AC
- Max voltage : 2500 V AC
- Working temperature: -40°C to 105°C
- Endurance: ≥ 500cycles

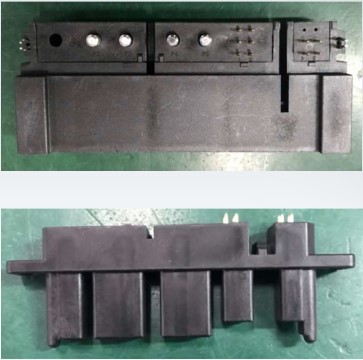

AC output CZ36E-20 connectors
DC input charging pile module
- Number of contact pins : 5P +15S
- UL certified
- Current rating : 42A or 2A (signal)
- Voltage rating : 1000 V DC or 60V DC
- Max voltage : 3000 V AC
- Working temperature: -40°C to 105°C
- Endurance: ≥ 500cycles
- Cables size : 5*8AWG + 15*22AWG
Solar energy connectors
Solar panel connectors
Connecting solar panels together and connection to (DC / AC) inverter.
Single core connectors
- Rated voltage : 1500V DC
- Rated current : 30A / 45A / 50A / 60A
- Standard interface according to IEC62852 international norm.
- Contact resistance ≤0.3mΩ
- IP68 (waterproof connectors after assembly)
- UL94V0 (flame retardant)
- Compatible wires : D5mm to D7.8mm
- Operating T° : -40 to 85°C
Inverter connectors
JONHON connectors covers all the connection for solar panel inverters : inverter signal connectors, AC output connectors, DC input connectors, high current connectors and MSD maintenance switch connectors.
Connection solutions for all size of cables from 16mm2 to 95mm2.

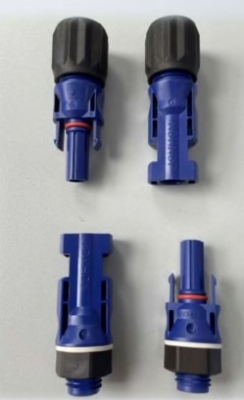

DC waterproof connectors, single core
- IEC62852 compliant
- Rated voltage : 1100 V
- Rated current : 25A to 45A
- IP68 waterproof connectors
- UL95V0
- Wire size from D5 to D7.5mm
High current connector, single core
- Rated voltage : 1000V
- Rated current : 70 to 120A
- IP67
- UL94V0
- Right angle outing
- References : ICG-A05 / ICG-A08 / ICG-A11
Busbar solutions
Backbone of all electronics systems busbars enables high-current connectivity, below is all the different kind of JONHON busbar that we may supply you :
- Cylindrical bars with aluminium shielding
- Rectangular rows with insulating sheath
- Copper foil flexible busbar
- Hard machined copper busbar.
- Overmolding (plastic protection case around aluminium or copper busbar)
- Laminated busbar, made by metal sheets with PET film insulating layers
- Vacuum laminated busbars
Data center connectors
Data centers use JONHON connectors for competitive solutions to ensure smooth data and power transfer operations.

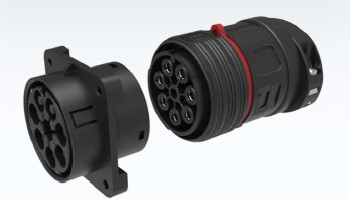

Quick plug electrical connectors
- Easy connection by push / pull operation.
- Available with 5 or 7 contacts
- Solutions from 60A up to 630A
- Connector / cable assembly can be made on site, with screwing or cold pressing.

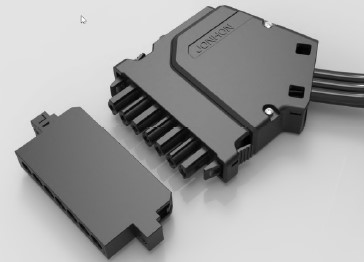

Power shelf AC input connector
- 7 contacts connectors
- Usable in single-phase or three-phases input
- Press & lock assembly
- Contacts compatible with 6AWG and 16mm2 cables

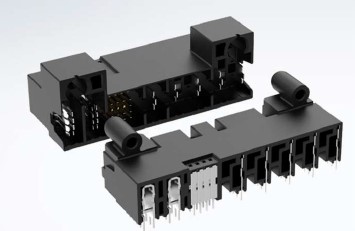

Power shelf AC rectification connector
- 7 power contacts (2 high power + 5 low power) + 20 signal contacts
- Reinforced insulation of power contacts
- Rated current : 80A / 30A / 2A
Power clip connectors
- OCP architecture compatible / Centralized power distribution server cabinets
- Different assembly systems available
- Rated current available : 75A |120A | 100A | 157A |160A | 70A | 500A
- Works with busbar thickness of 3mm / 5mm / 6 mm
- References : CZ43-2Y-44-5.5 | CZ43-2Y-44-6.8 | CZ43-2W-32 | CZ43-2Y-32 | CZ43-1Y-32 | CZ43-2Y-65 | CZ43-2Y-55
PSU output CRPS connectors
- Through hole assembly or press fit assembly on PCB
- Right angle or vertical
- Different power available : 1500 W / 2500 W / 3000 W / 3200W
- High throughput technology
- Standard and Mini CRPS
Interboard power supply connector
- Through hole assembly or press fit assembly on PCB
- Right angle or vertical
- Different flow available : 30A to 150A
- Connects PCB to PCB

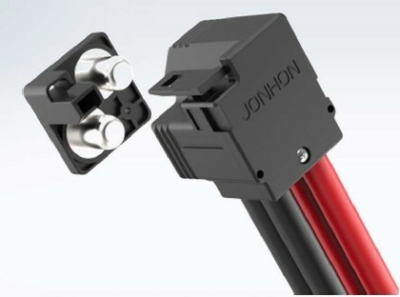

Line board power supply connector
- Press and lock for easy assembly
- Connects PCB to PCB in data center application
- Rated current : 160A & 200A
- Compatible with 6AWG & 16mm2 wires
